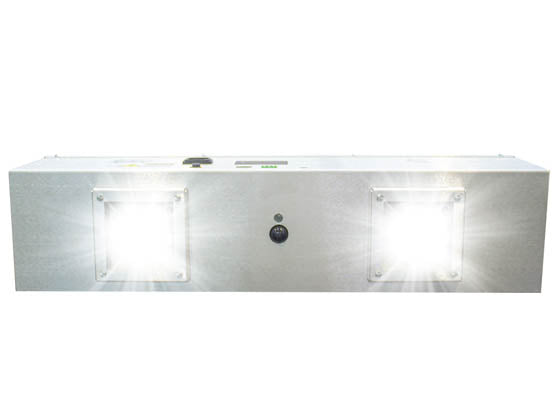

Helo F2 UV Disinfection Unit
Helo F2 UV Disinfection Unit
The Helo F2 disinfects a whole room, delivering disinfection from above. It is installed simply by positioning it in a drop-in grid ceiling or can be recessed in a hard lid ceiling, suspended or wall mounted. It emits broad spectrum UV light to eliminate up to 99.9% of the bacteria, viruses, and fungi in a space1. In rooms that have been cleaned of mold, the unit will help control return growth if used routinely2.
1. Independently validated to kill up to 99.9% of E. coli, MRSA, Salmonella enterica, Norovirus, human coronavirus 229E, C. diff and C. auris
2. Research Journal of Microbiology, 2 (1), 42-49, 2007; Mycological Research, Vol. 92, Issue 3, 1989
UV Illumination
| Light Source | Proprietary Pulsed Xenon Lamp |
|---|---|
| Pulse Interval | 1 UV Flash every 6 seconds |
| Wavelengths | UV-C (200-280nm) Germicidal UV-B (280-320nm) Germicidal UV-A (320-400nm) Bactericidal |
| Range | Up to 12' x 12' typical (144 sq feet) |
| UV Bulb Rated Life | > 2 Million UV Flashes |
Electrical System
| Input Voltage | 110V AC |
|---|---|
| Max Current | 7 Amps |
| Average Power | 125W during operation |
| Power Connection | 3-prong grounded plug |

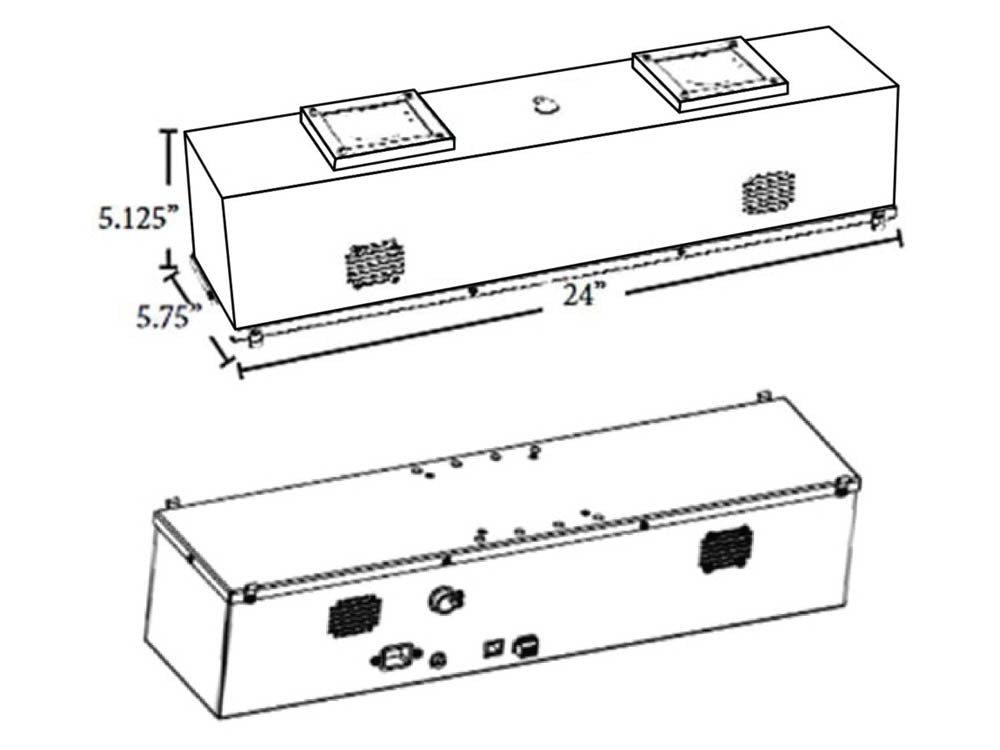

Physical
| Weight | F2: 8.4lbs |
|---|---|
| Housing/Finish | Brushed Aluminum |
| Optics | Dual patented UV Light Engine with transmissive UV lens and pulsed Xenon UV lamp |
| Beam Angle | 170° |
Environment
| Ambient Operating Temperature | 41° to 104°F |
|---|---|
| Ambient Operating Humidity | < 80% RH non-condensing |
Certifications
| Safety | TUV Certified, tested to UL61010-12012; CAN/CSA c22.2 NO.61010-12012 |
|---|---|
| FCC | Compliant with Part 15 Class A |
| RoHS | Compliant |
