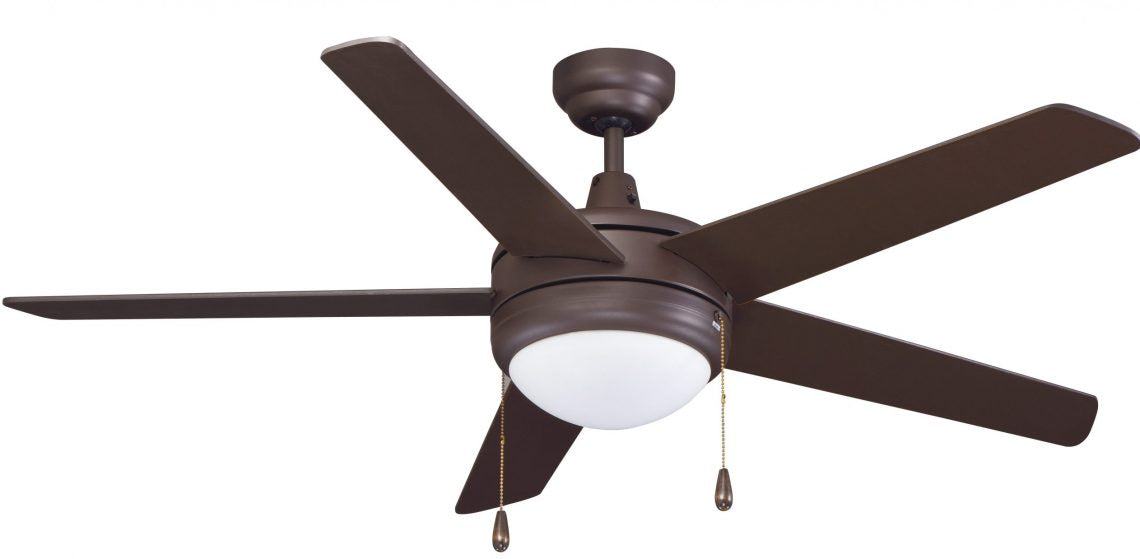

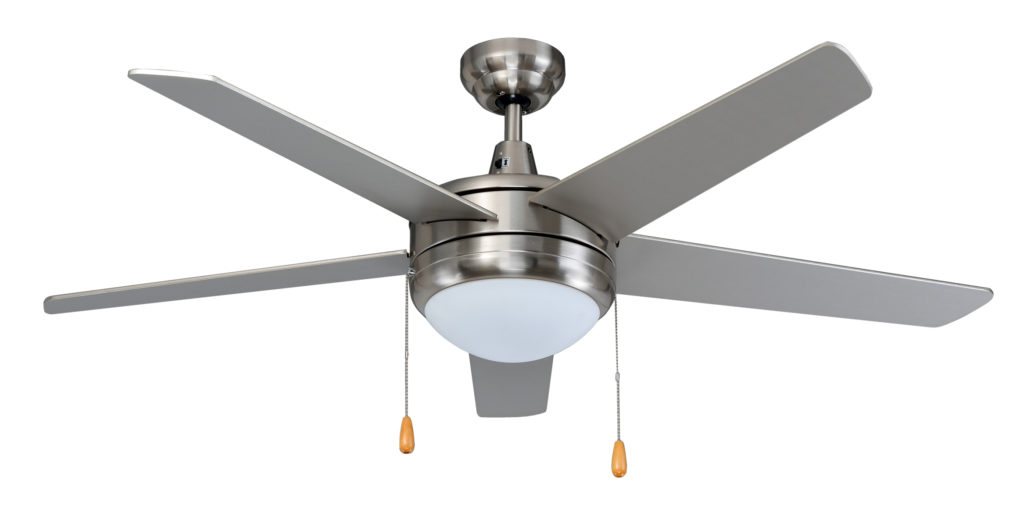

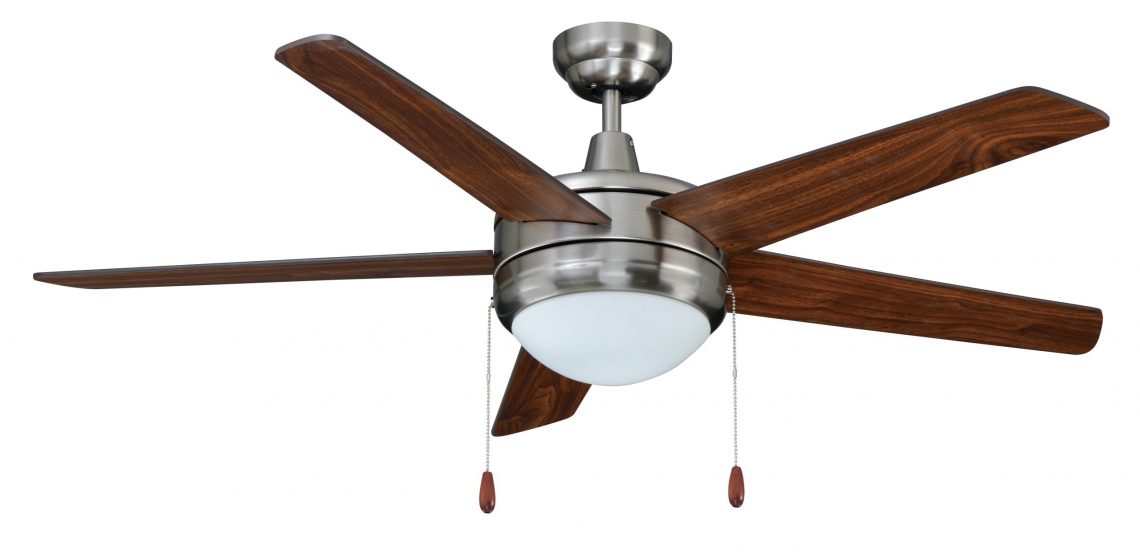

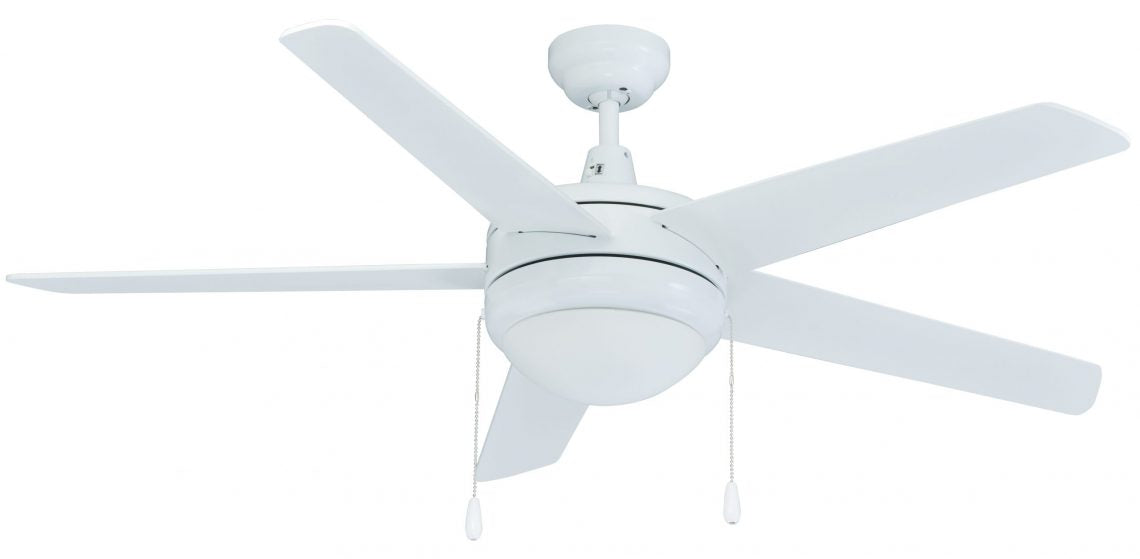

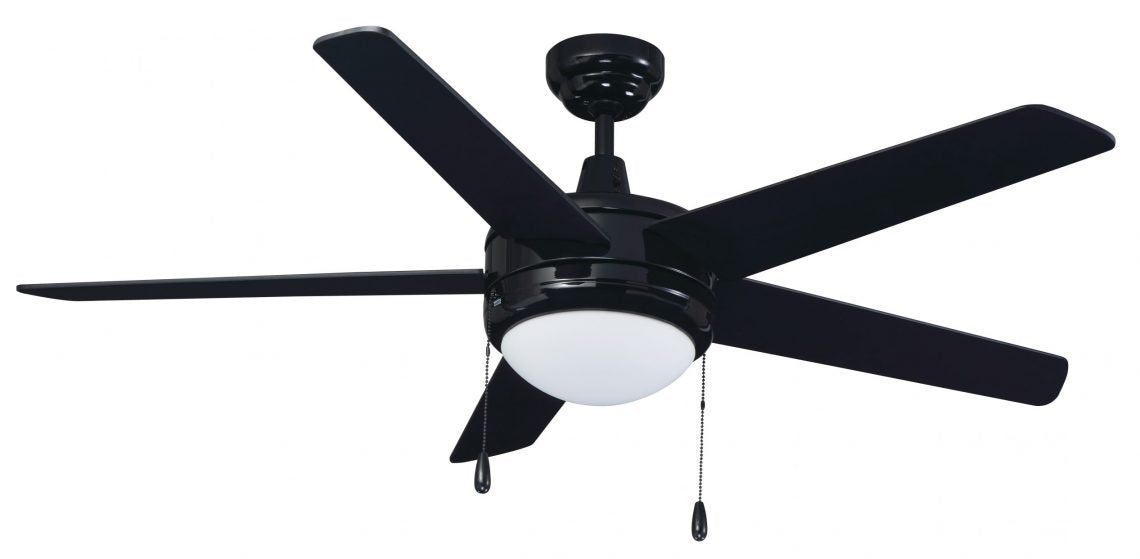

Mirage - 5-Blade, 52" Sweep, Integrated LED Light Kit Included

Product Description

The clean lines and modern design of the Mirage Series add style to any contemporary space. The efficient integrated light kit provides ample illumination and energy savings over traditional sources.

Product Features

Motor

• 3-Speed | Reversible
• AC Motor | 153 x 15 mm motor | 3 capacitors
• RPM: High: 196 Low: 84
• 5149 CFM | 59.6 W | Efficiency = 86
• 76” Lead wire | 4” down rod included

Blades

• 5-Blade, 50” sweep
• Blade Construction: Plywood*
• 12° pitch

*To avoid fan blade warping, fan must be installed in climate controlled environment

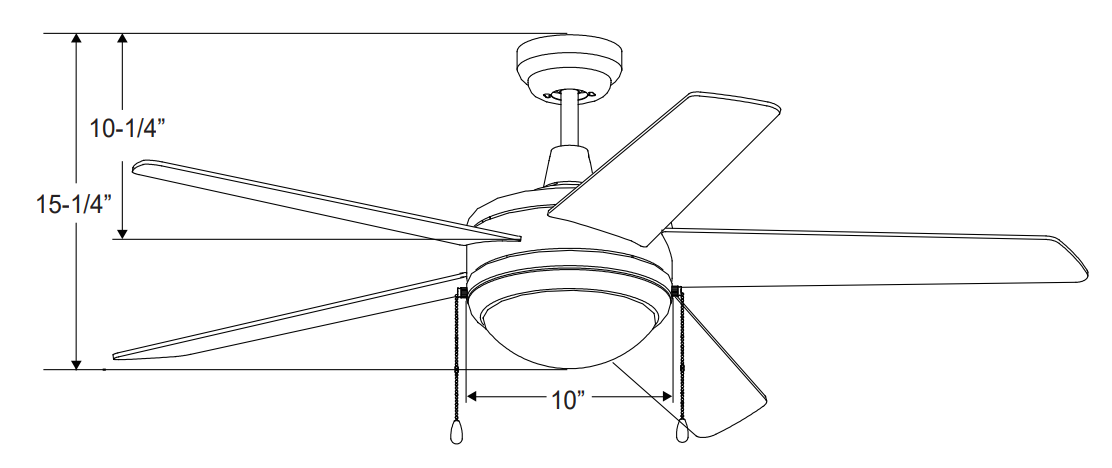

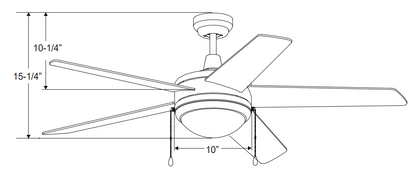

Dimensions

• Height (lowest point): 15-1/4"

• Width (housing): 10"
• Height (top of blade): 10-1/4"

Controls

• Pull Chain Standard
• Optional Remote Control (sold separately) RC-10
• Optional Wall Control (sold separately) WC-4 | WC-8 | WC-13 | WC-16

Certifications

• cETLus Listed for damp location
• Fan Motor: Limited Lifetime Warranty
• LED Light Kit: 5 Year Limited Warranty
• Non-Electrical: 1 Year Limited Warranty

Available Accessories

Light Kit

• Integrated LED light kit included
• 16W | 1302 lms (source) | 822 lms (delivered) |
• 3000K | 90 CRI | Dimmable
• Shade: Satin white glass
• Replacement glass: 1079-G-LED
