Mirage IV - 5-blade, 52” Sweep, AC Motor, with Pull Chain, Energy Star Listed

Product Description

The clean lines and modern design of this AC Motor, LED Mirage Series fan adds style to any contemporary space. The efficient integrated LED light kit provides ample illumination and energy savings over traditional sources.

Product Features

Motor

• 3 Speed | Reversible
• AC Motor | 172 x 14 mm motor | 3 capacitors
• RPM:  High: 177  Low: 73
• 5224 CFM | 50.16 W | Efficiency = 104.1
• 76” Lead wire | 4” down rod included

Blades

• 5-Blade, 52” sweep
• Blade Construction: Plywood
• 12° pitch

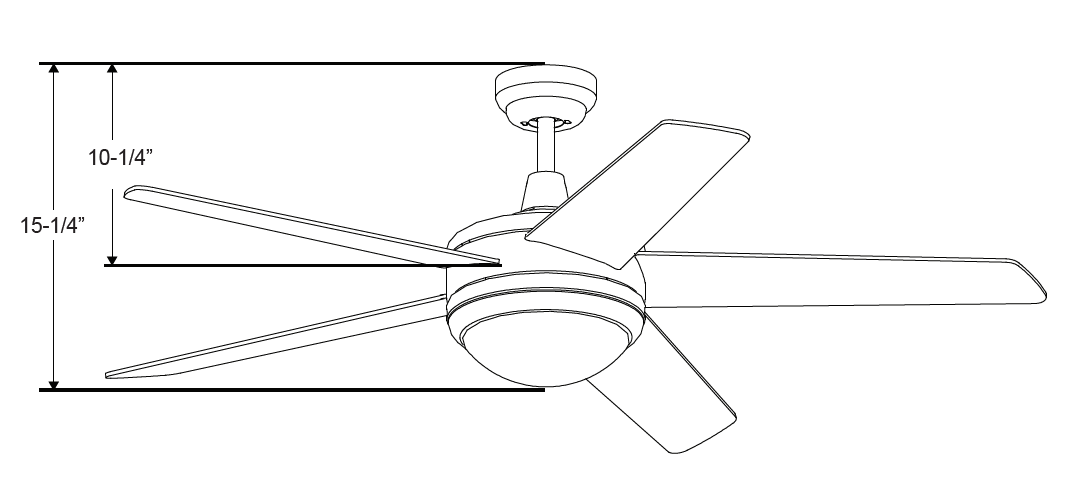

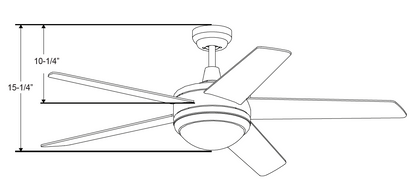

Dimensions

• Height (lowest point): 15-1/4"

• Width (housing): 10"

• Height (top of blade): 10-1/4"


Controls

• Pull Chain Standard
• Optional Remote Control (sold separately): RC-10
• Optional Wall Control (sold separately): WC-8, or WC-16

Certifications

• cEnergy Star 4.0 Listed
• Title 20 Compliant
• cETLus Listed for dry location
• Fan Motor: Limited Lifetime Warranty
• LED Light Kit: 5 Year Limited Warranty
• Non-Electrical: 1 Year Limited Warranty

Available Accessories

Light Kit

• Integrated LED light kit included: 16W | 1302lms (source) | 822 lms (delivered)  | 3000K | 90CRI | Dimmable
• Shade: Satin white glass
• Replacement Glass: 1079-G-LED
