Nano Box Window Shades

Features

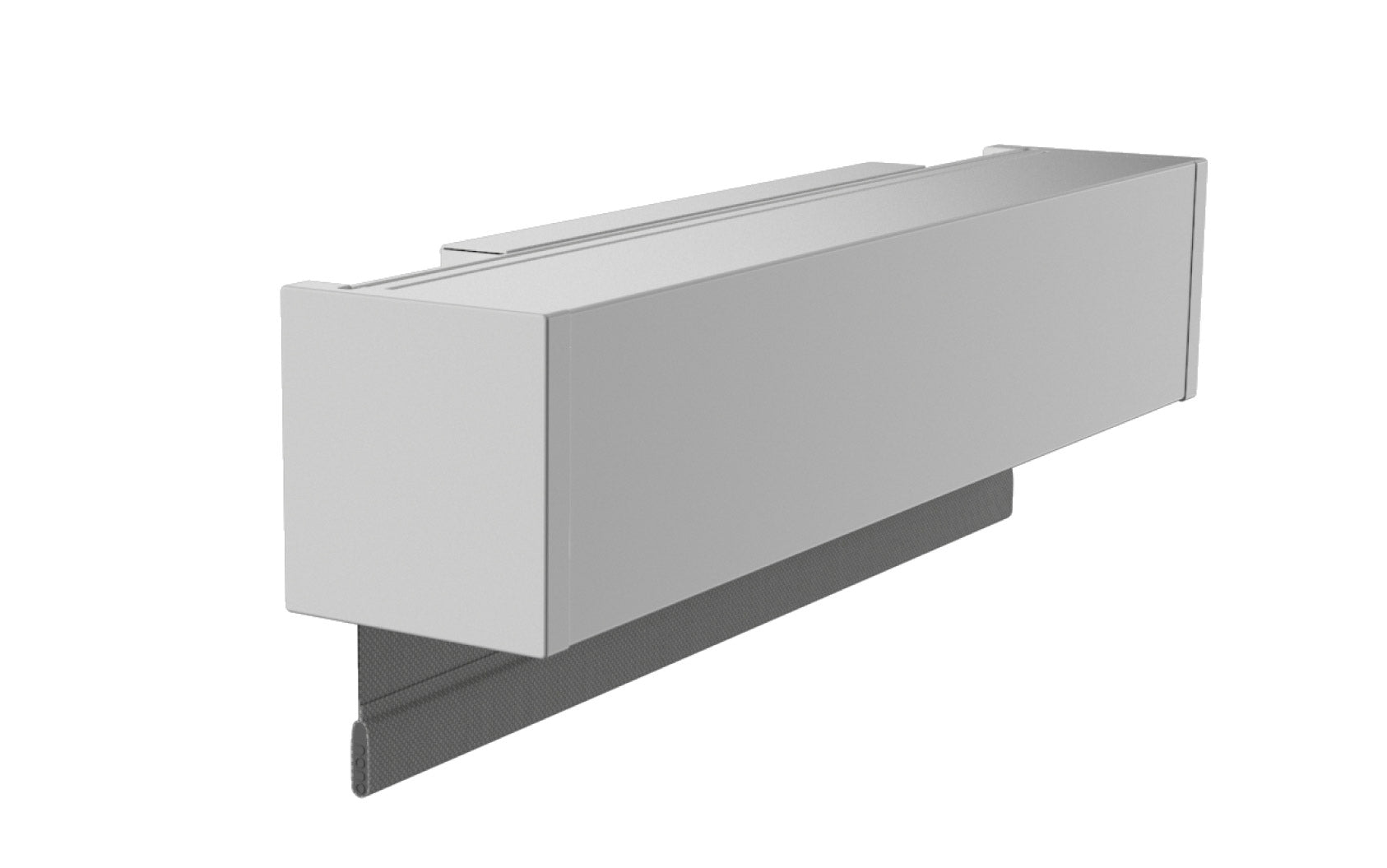

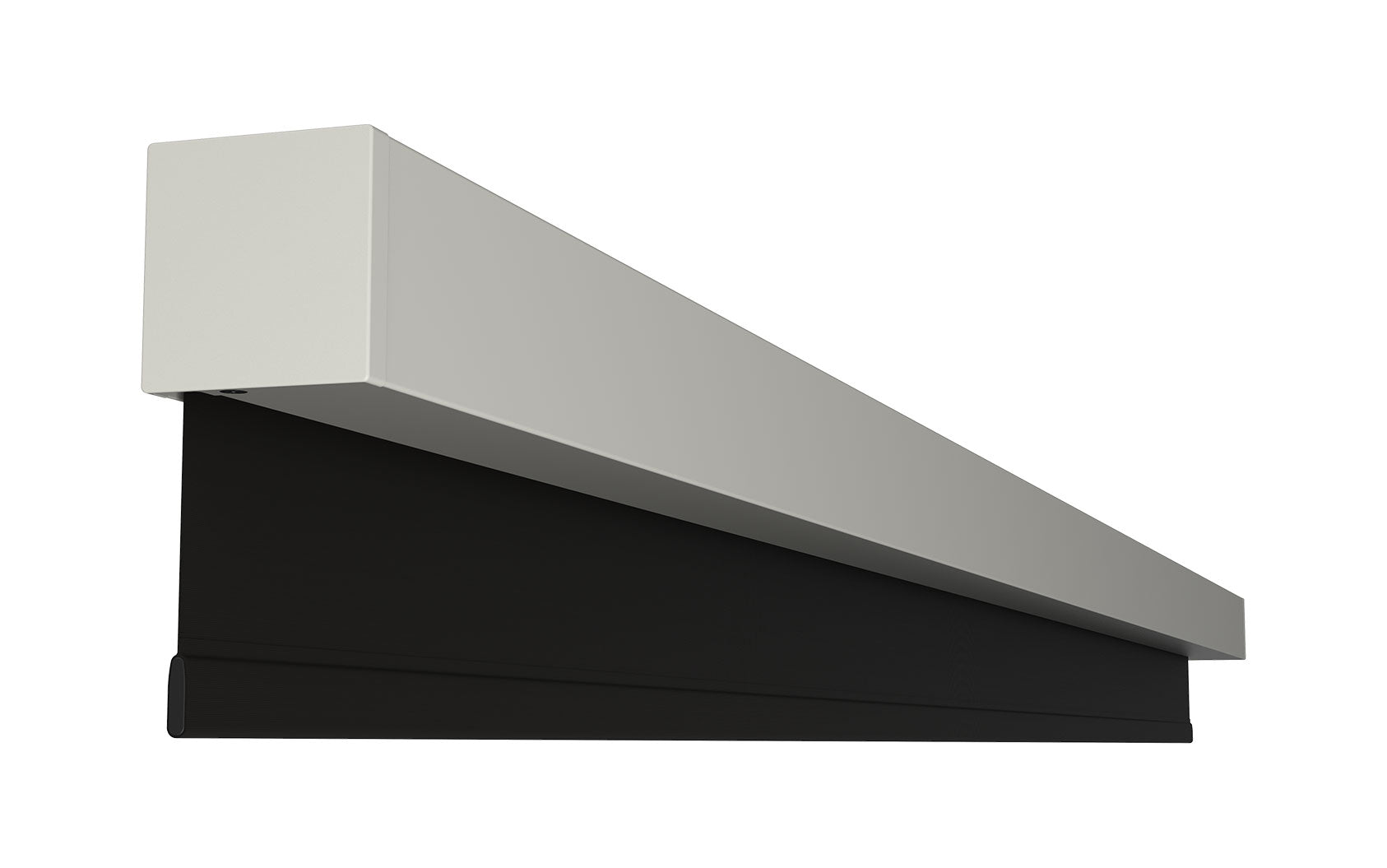

Nano Box, the world's smallest cassette allows you to easily blend your shade into any window allowing the shade to virtually disappear in the window.

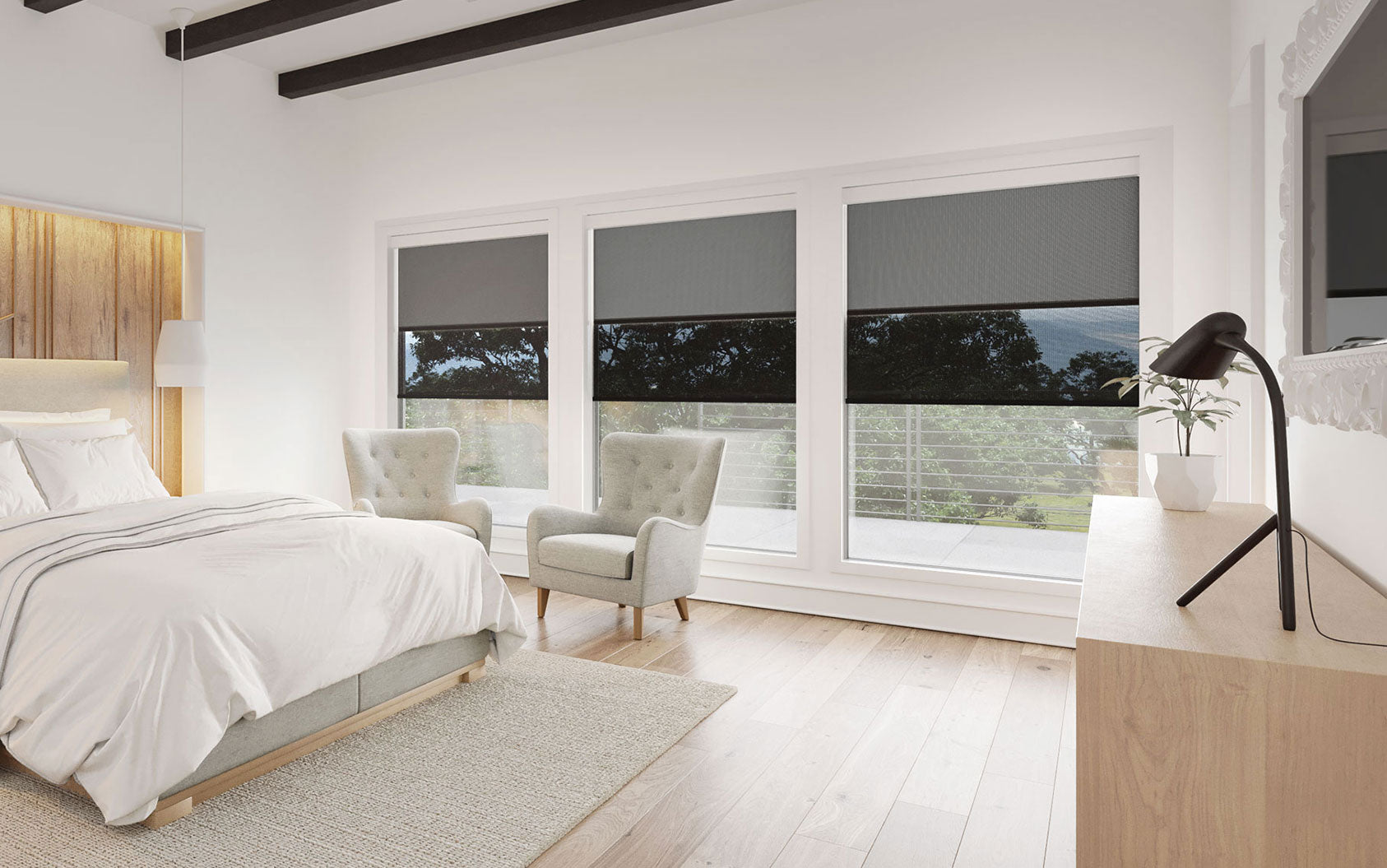

Nano Duo shades are the best of both worlds in one cassette, occupying only 3.79" of depth.
Optional Side & Sill Channels eliminate light gaps for a blackout experience.
Ultra-quiet operation.
Low Voltage and Lithium Battery Shades have soft start/stop technology.
Programmable limits. Fine tunable using a remote, through your control system, or the TaHoma app, depending on configuration.
Industry leading light gaps, as small as 5/8", depending on size and configuration.
Shades move in unison, with speeds programmable through integration.
Expansive textile/fabric options with UV blocking Sunscreen, Light Filtering, Privacy and Black-out available. Most commercial grade fabrics carry NFPA 701-10 California Title 19, ASTM E2180, ASTM G21 Bacterial & Fungal Resistance and some carry various Acoustical Ratings for sound absorption. Custom fabric options available.
Power failure memory for the life of the shade.
Available in Wired using 485/Zigbee LV with Janus, SiFi, and Fontus, or Wireless using Sigbee or RTS technologies.
Low voltage power and communication over Category cable, or over existing 2-wire installations.

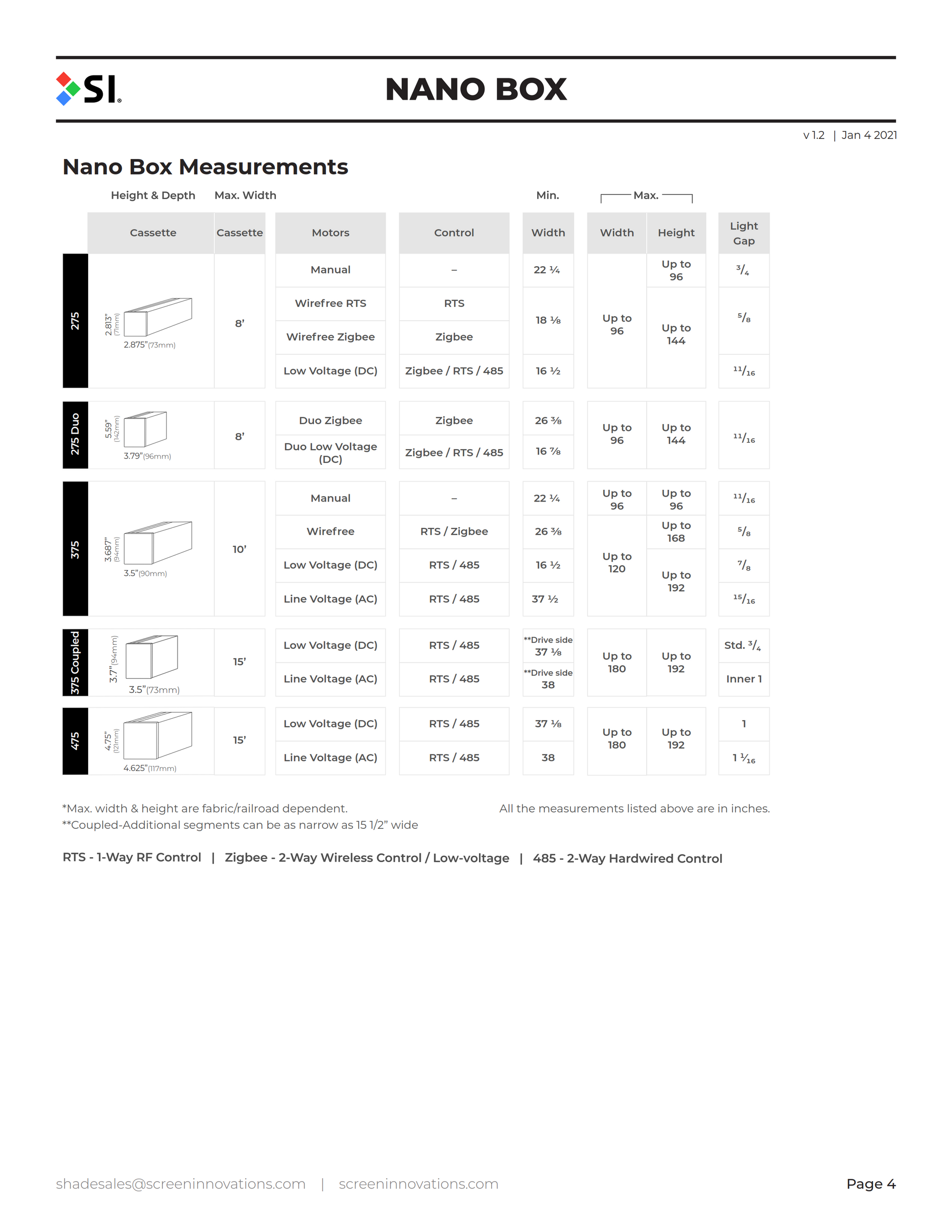

Sizes

275 | Duo 275 | 375 | 475

Methods of Control

Wired Integration and control

Wireless Integration and control

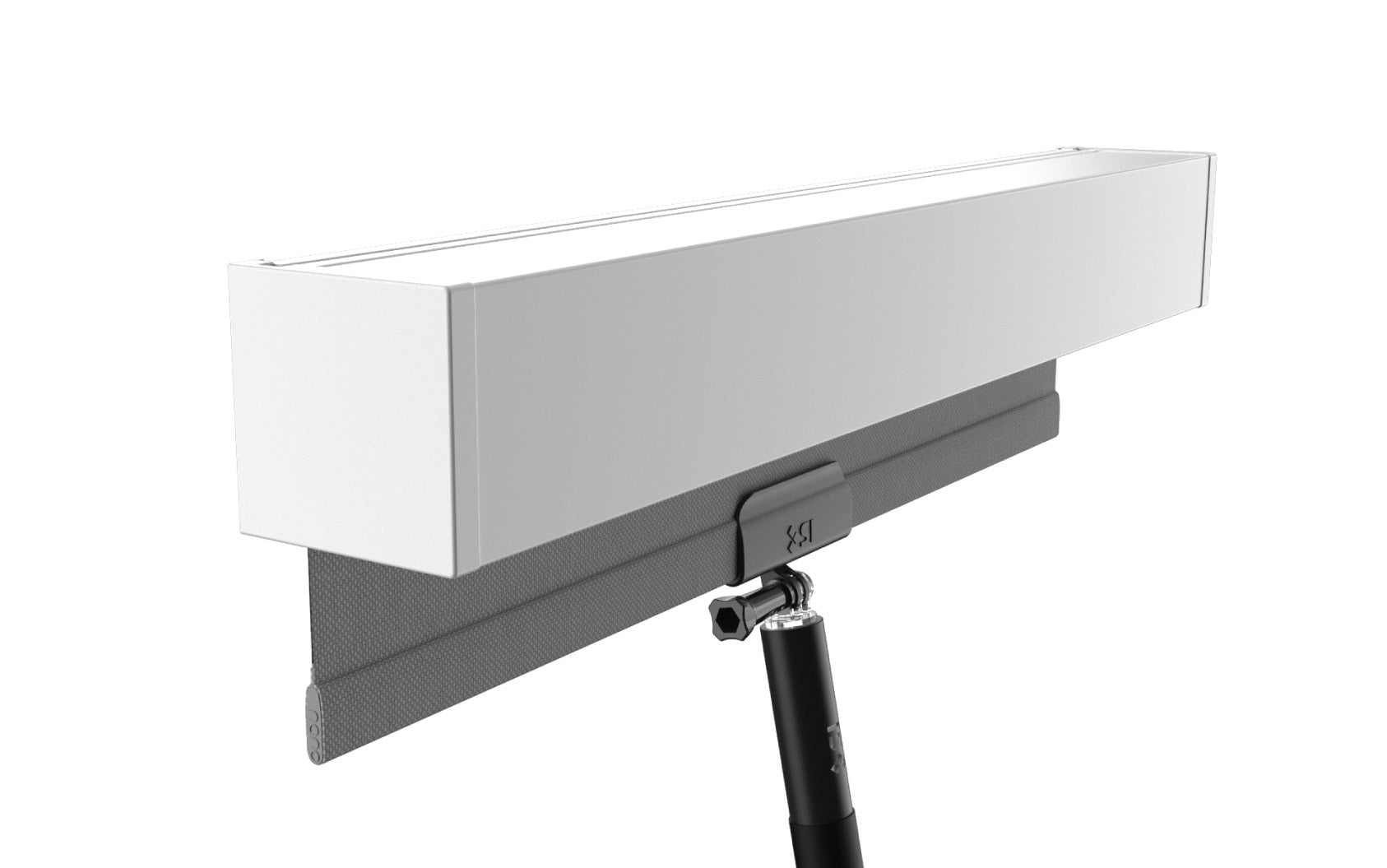

Manual Operation

Power

Low Voltage Power, with operating voltage: (class 2, 24-28v DC)
Power supply features over/under-voltage, over/under current, and thermal protection for all devices in the system.
Electrostatic isolated and galvanic isolation.
Non-volatile memory, meaning programming is protected in the case of a power failure.
Power must be derived from a Screen Innovations supplied power source for all low-voltage and charging.

Environment

Operating temperature range is normal ambient (32 to 110 degrees), and humidity levels up to 90%. Not meant for wet environments.
