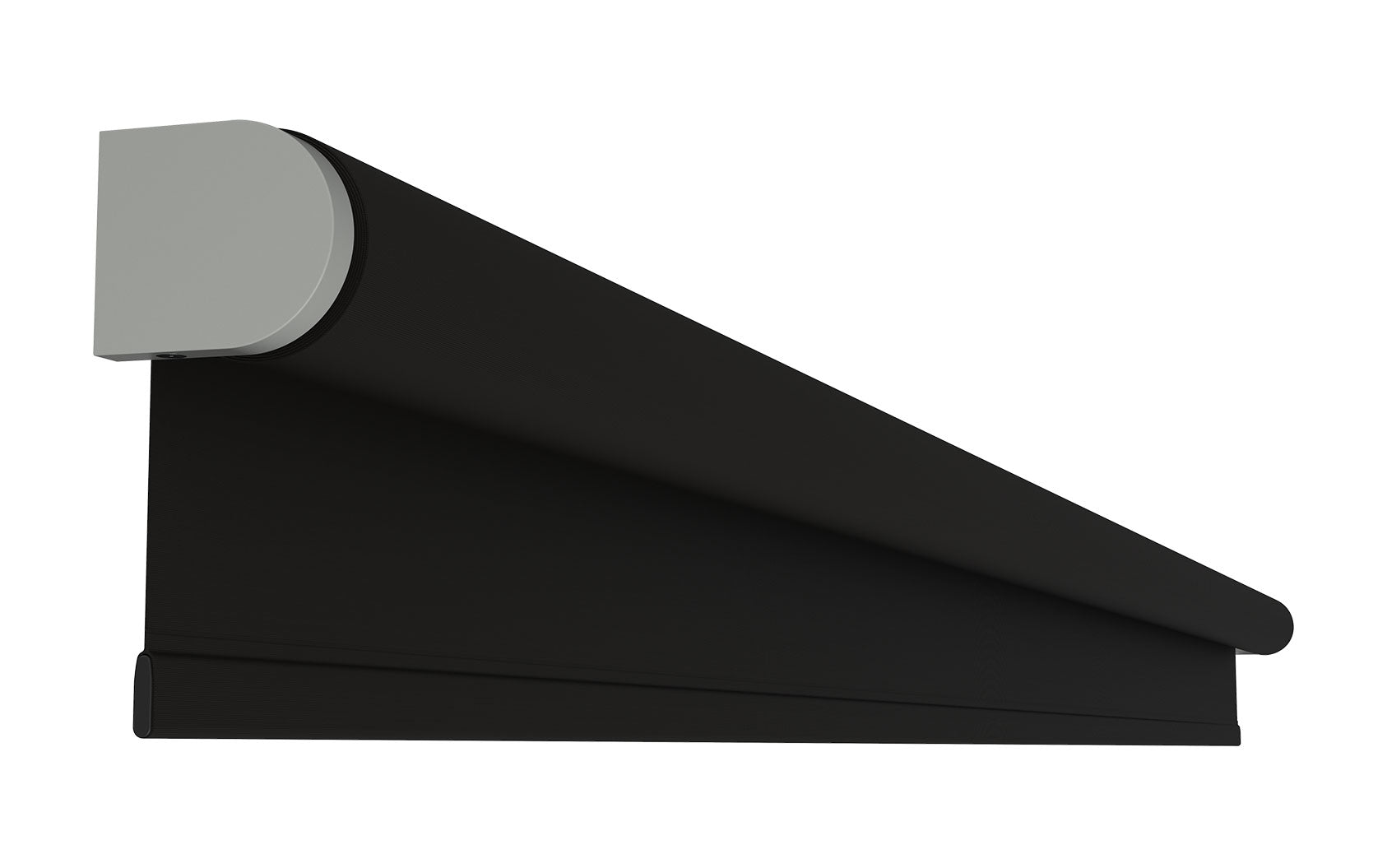

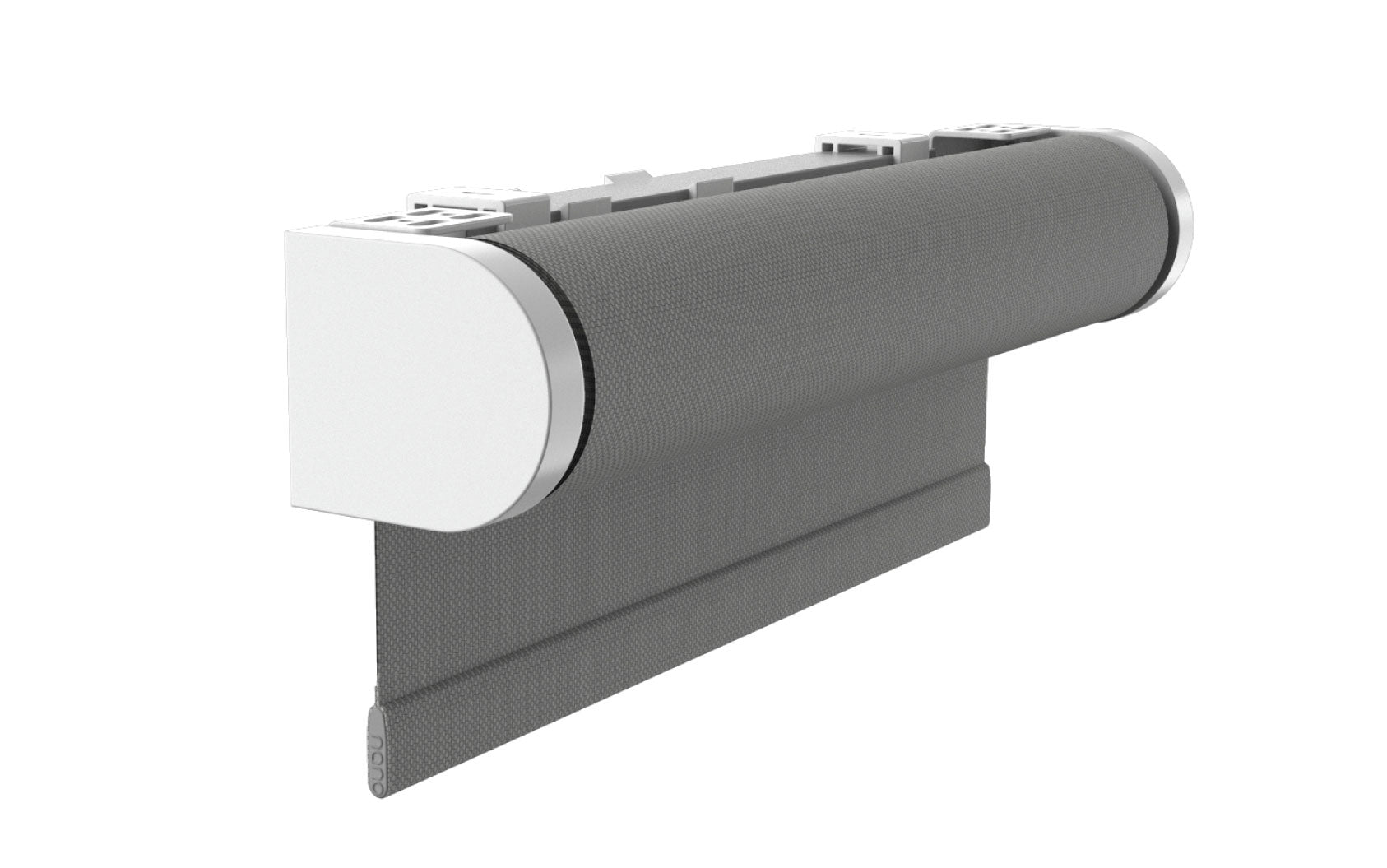

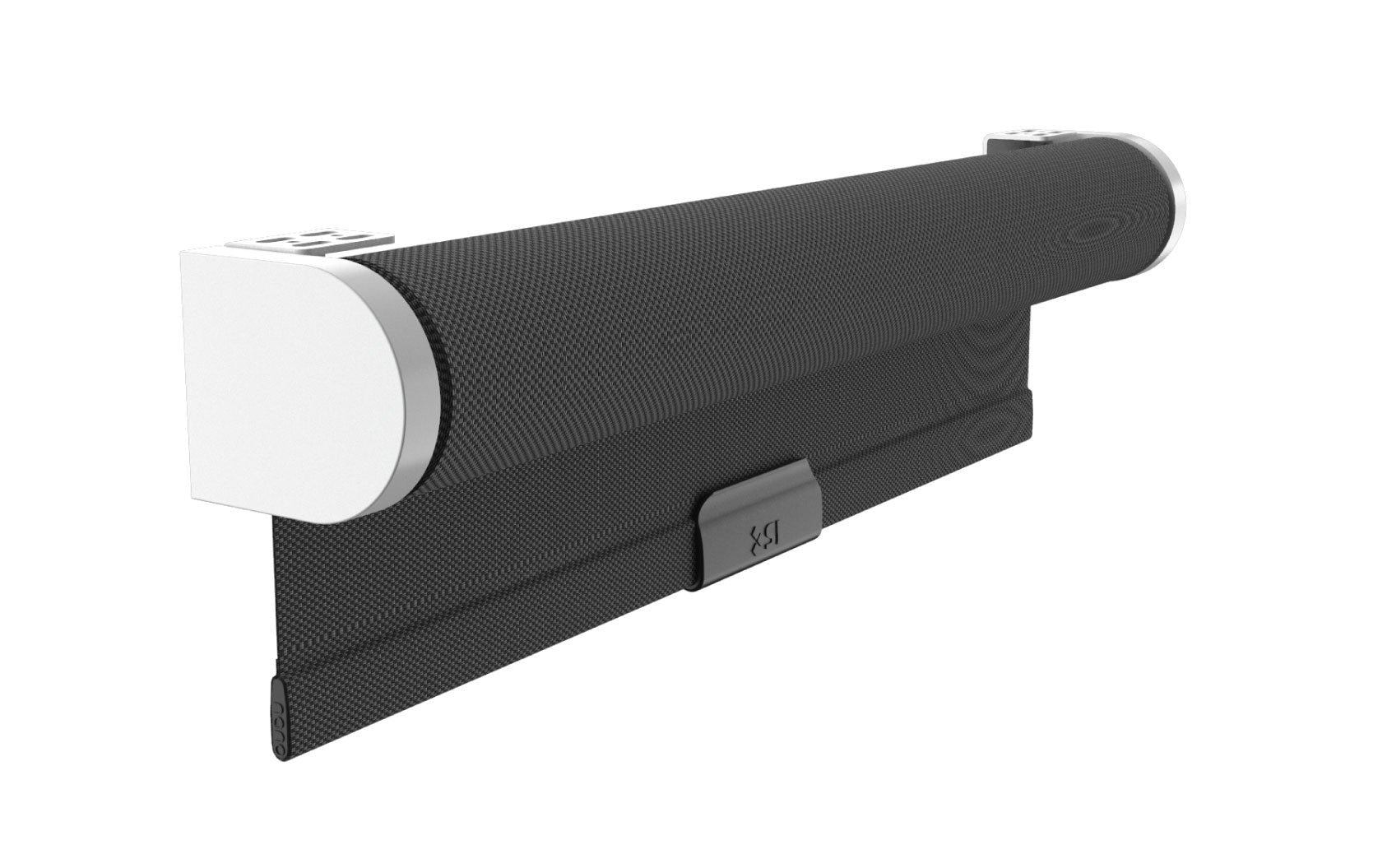

Nano Roll Window Shades

Features

• At only 2.50" tall, Nano Roll redefines what a small designer shade should be.

• Ultra-quiet operation.

• Low Voltage and Lithium Battery Shades have soft start/stop technology.

• Programmable limits. Fine tunable using a remote, through your control system. or the Tahoma app, depending on configuration.

• Industry leading light gaps, as small as 5/8", depending on size and configuration.

• Shades move in unison, with speeds programmable through integration.


• Expansive textile/fabric options wit UV blocking Sunscreen, Light Filtering, Privacy and Black-out available. Most commercial grade fabrics carry NFPA 701-10 California Title 19, ASTM E2180, ASTM G21 Bacterial & Fungal Resistance and some carry various Acoustical Ratings for sound absorption. Custom fabric options available.

• Power failure memory for the life of the shade.

• Available in Wired using 485/Zigbee LV with Janus, SiFi, and Fontus, or Wireless using Zigbee or RTS technologies.

• Low voltage power and communication over Category cable, or over existing 2-wire installations.

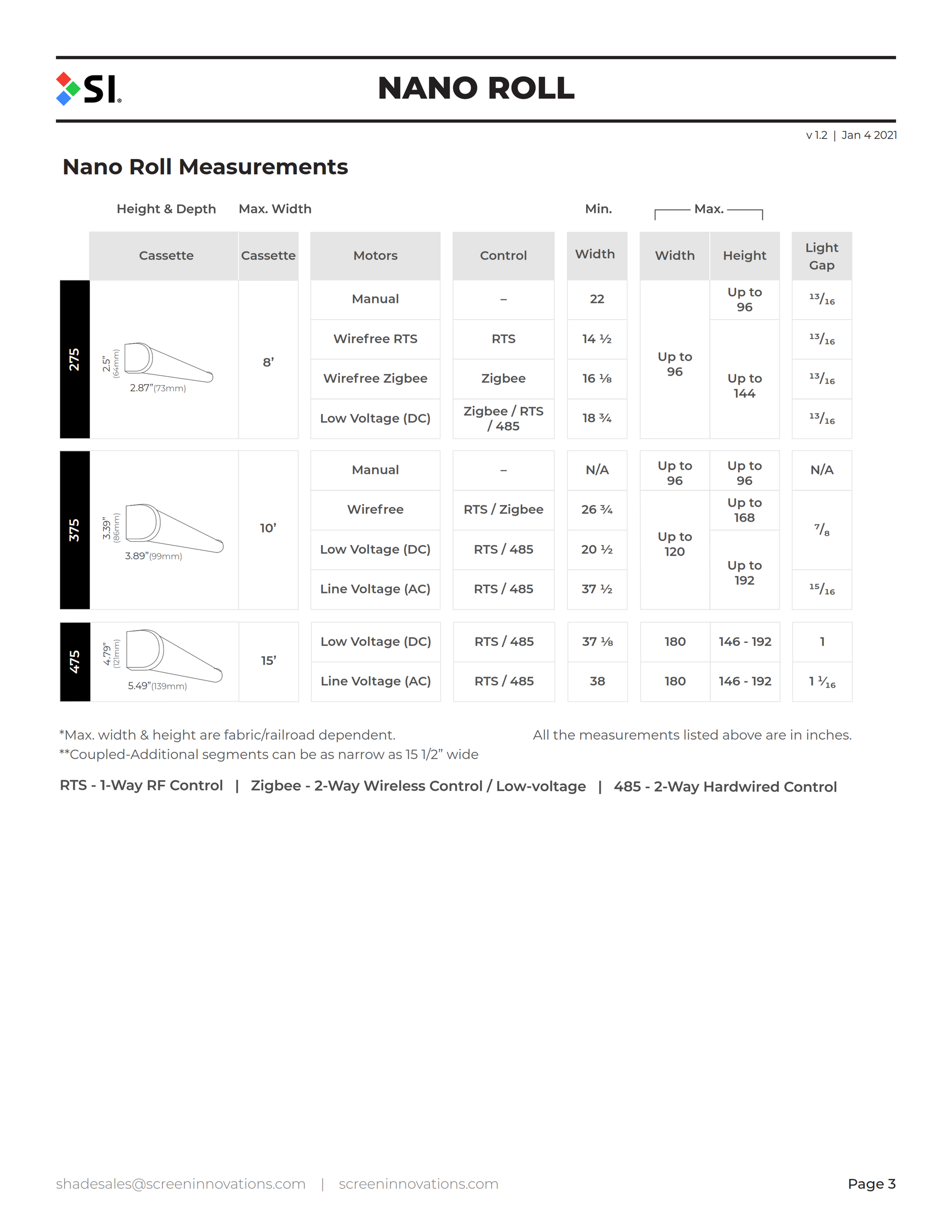

Sizes

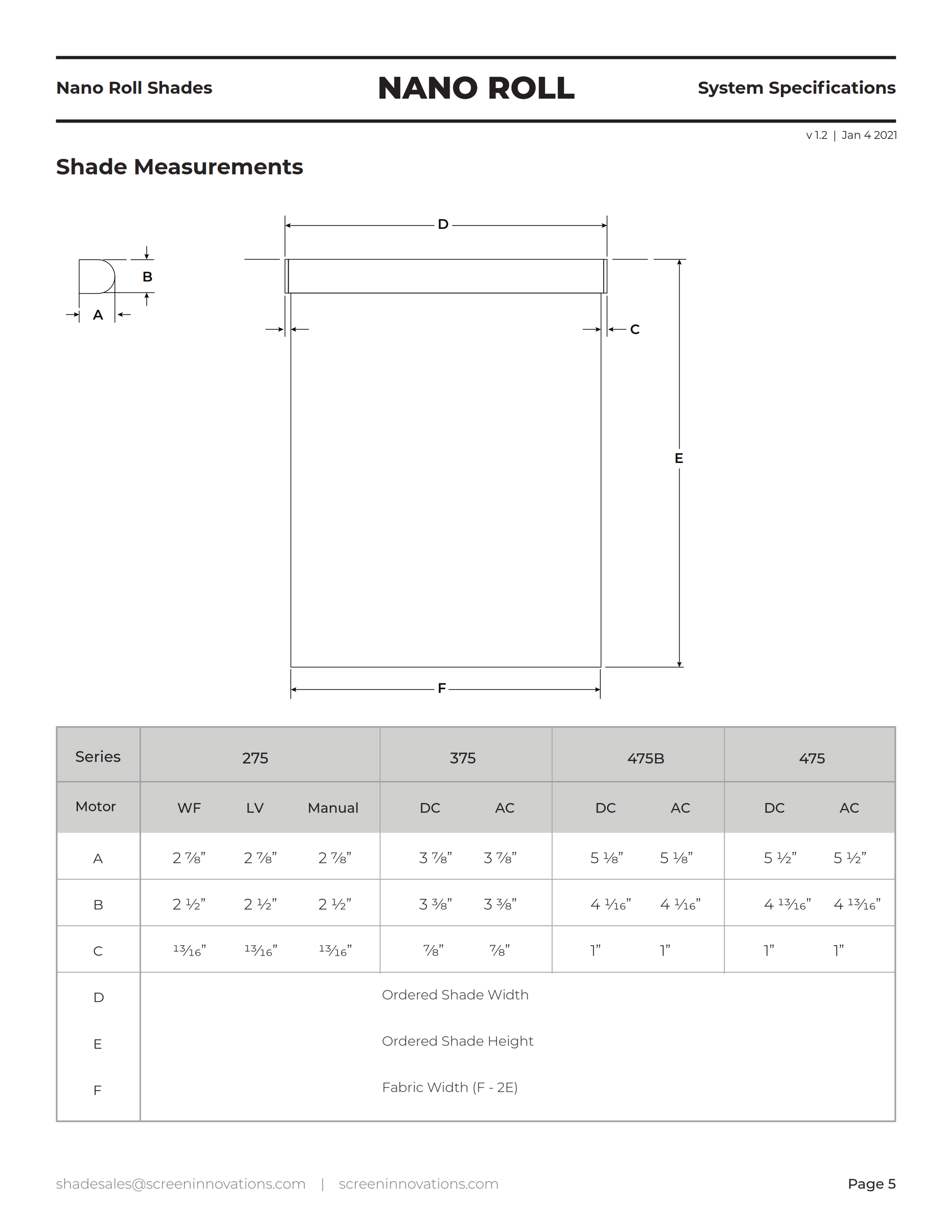

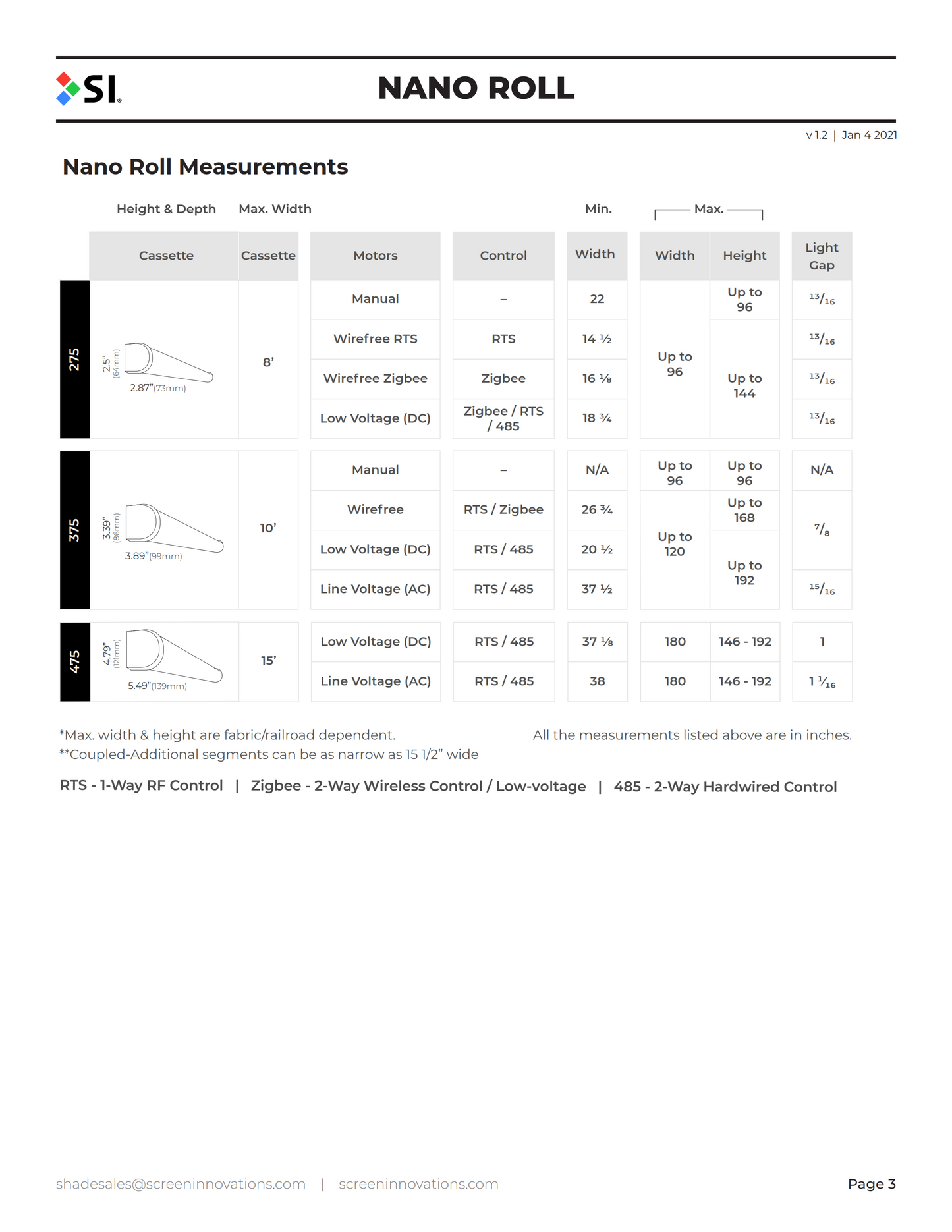

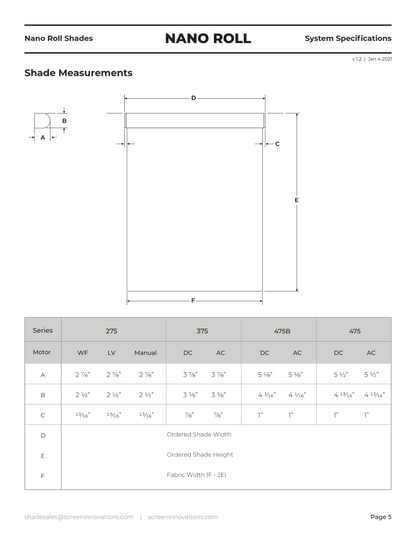

• 275 | 375 | 475

Methods of Control

 Wired Integration and Control

• IP control for all popular control systems - 485 Serial 232
• Contact closure (global and local)
• 12v trigger
• 0-10v

Wireless Integration and control

• Zigbee
• RTS (global and local)
• IR

Power

• Low Voltage Power, with operating voltage: (class 2, 24-28v DC)

• Power Supply features over/under-voltage, over/under current, and thermal protection for all devices in the system
• Electrostatic isolated and galvanic isolation
• Non-volatile memory, meaning programming is protected in the case of a power failure
• Power must be derived from a Screen Innovations supplied power source for all low-voltage and charging.

Environment

Operating temperature range is normal ambient (32 to 110 degrees), and humidity levels up to 90%. Not meant for wet environments.
