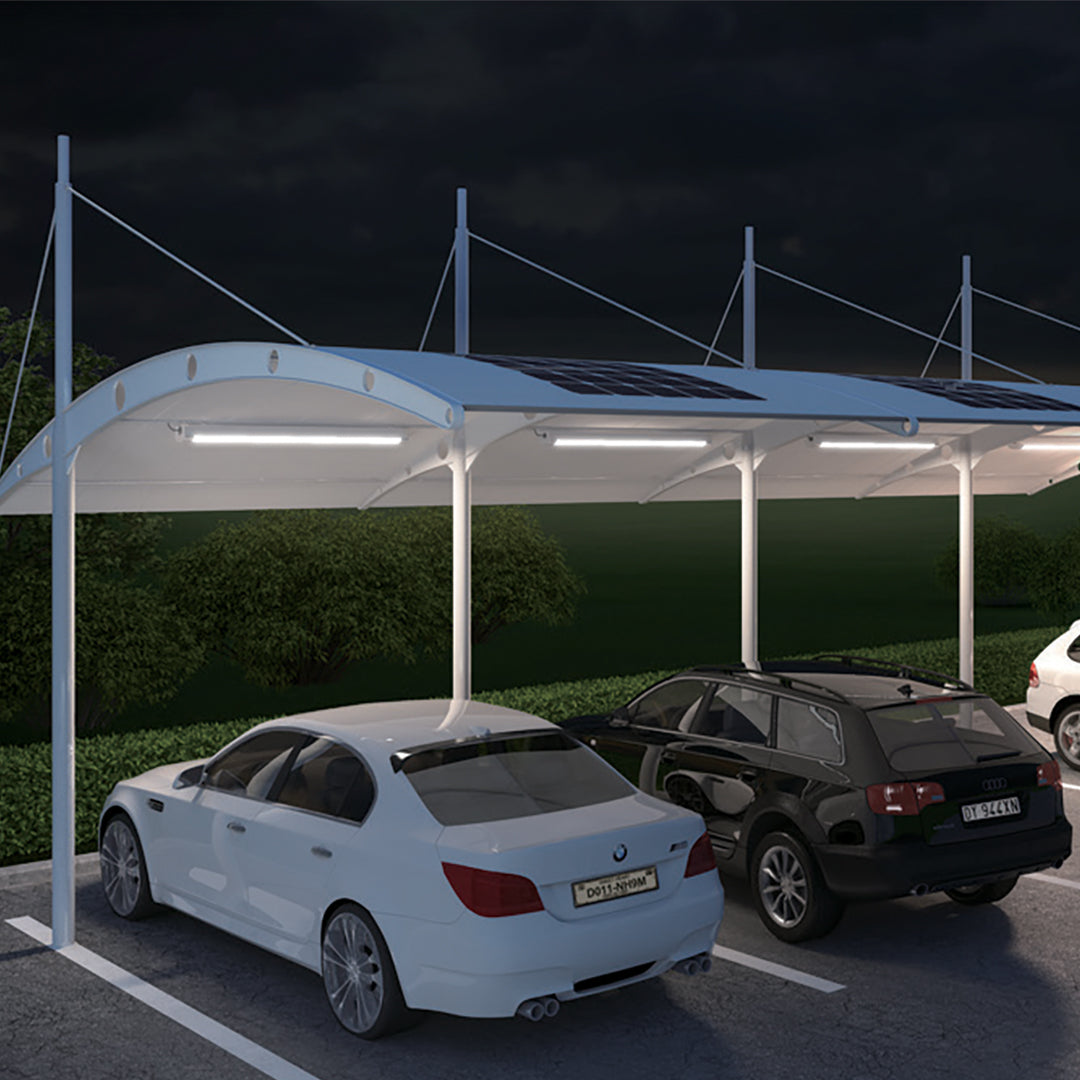

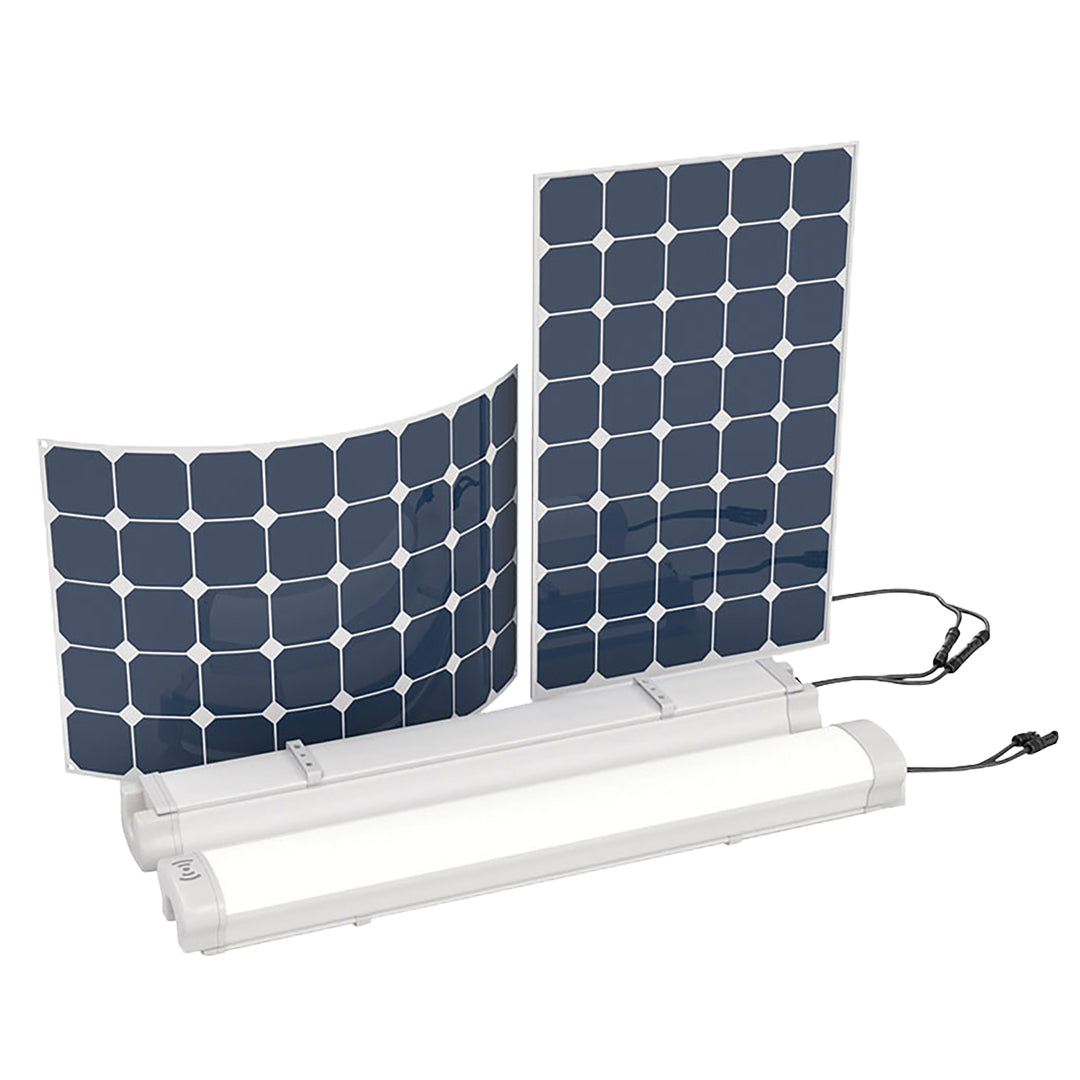

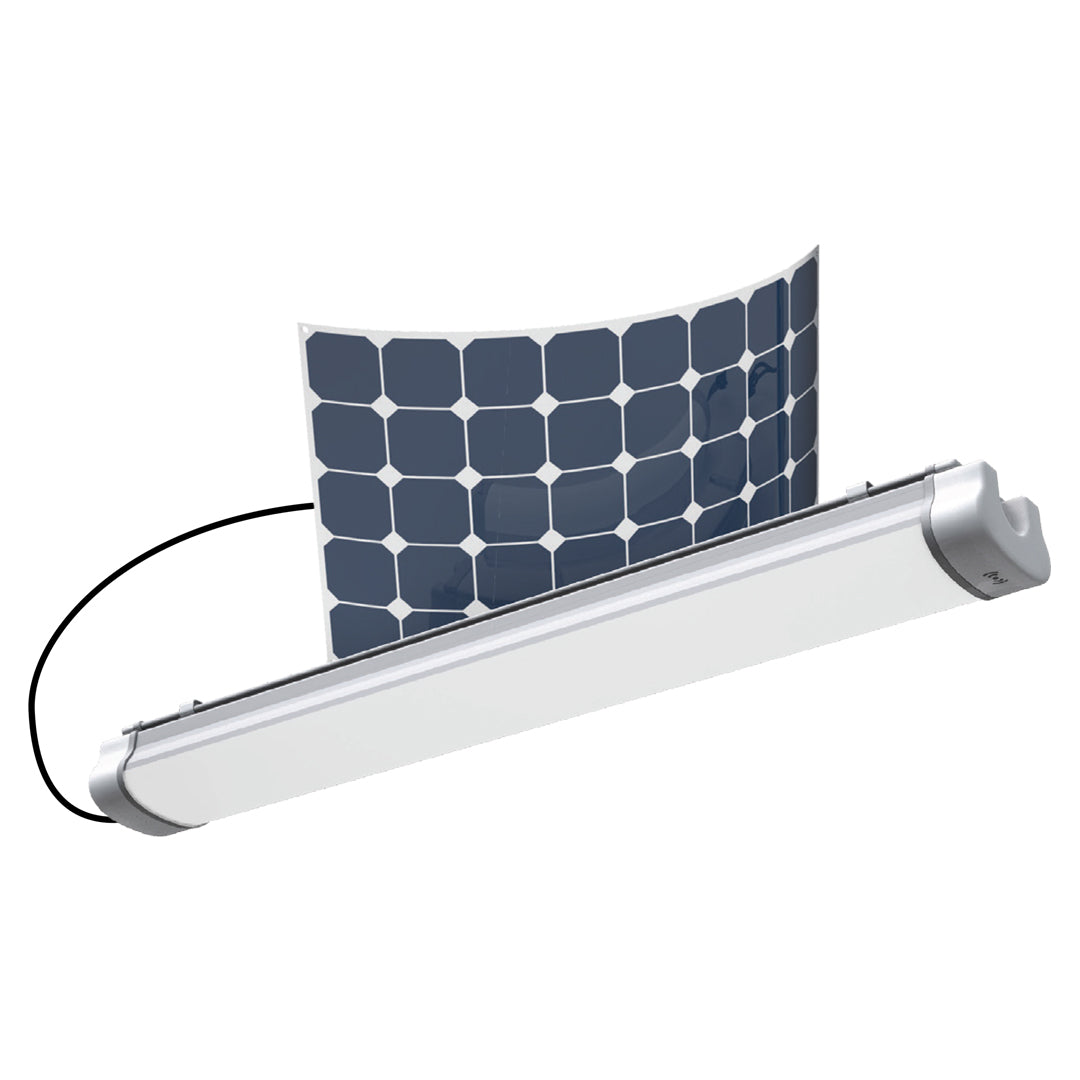

Solar Carport Portable Light

Solar Carport Portable Light

$1.00 USD
$1.00 USD
Sale Call for Availability
Product Specification Table
Wattage 12W
 18W 24W 36W 48W

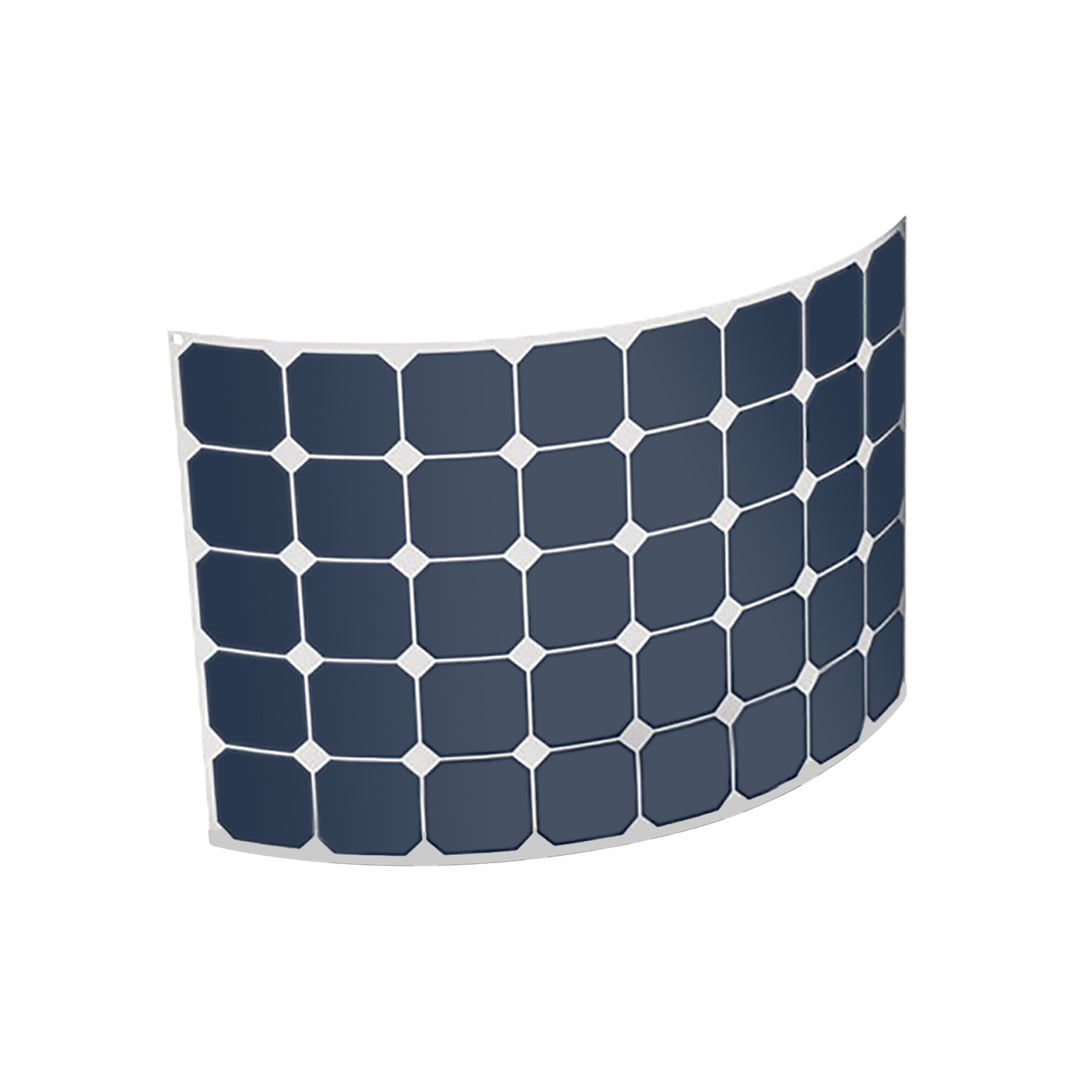

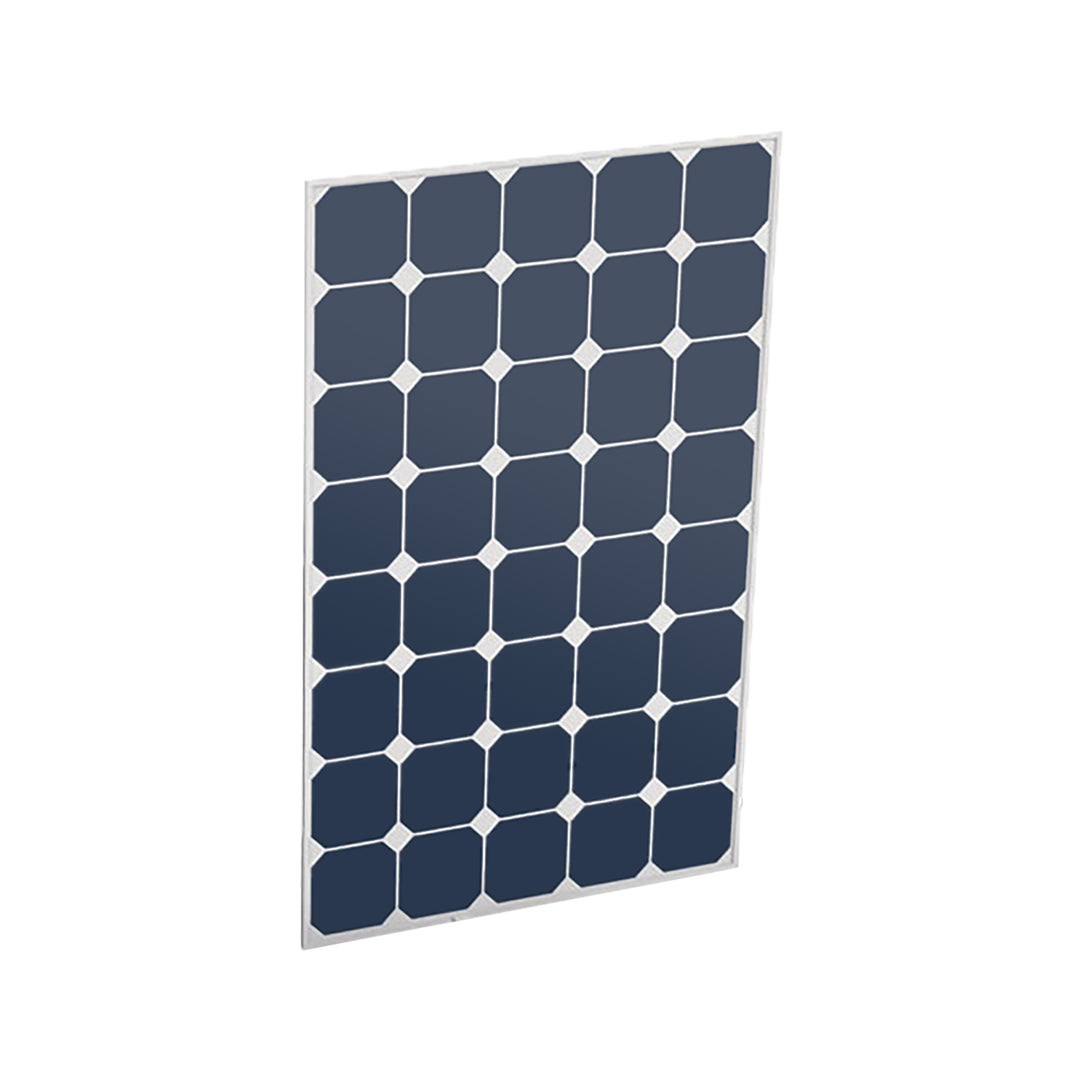

Solar Panel Spec 40W/18VDC 50W/18VDC 60W/18VDC 80W/18VDC 100W/18VDC
Cell of PV MONO Cell
Battery Capacity 144WH 11.1V 200WH 11.1V 288WH 11.1V 433WH 11.1V 577WH 11.1V

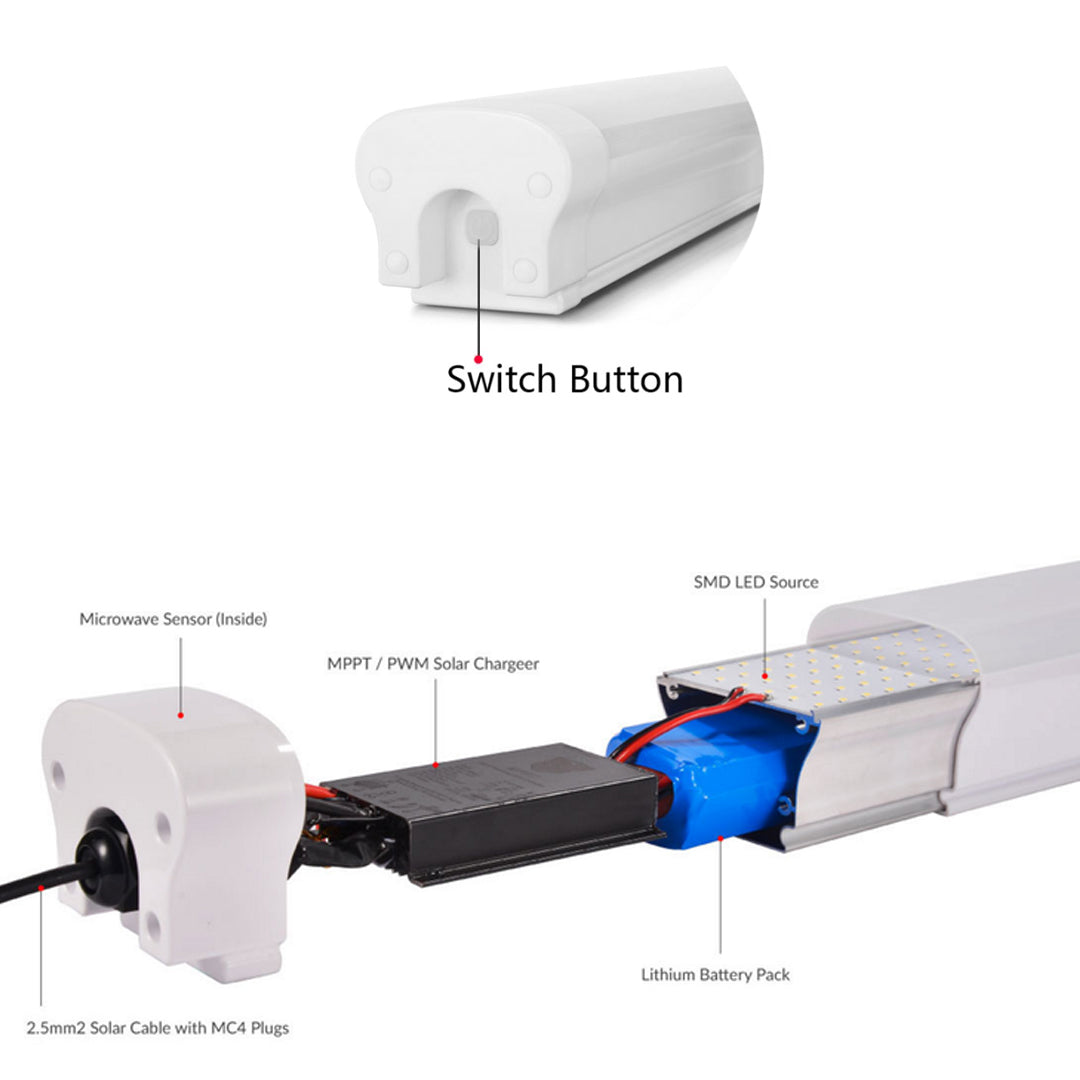

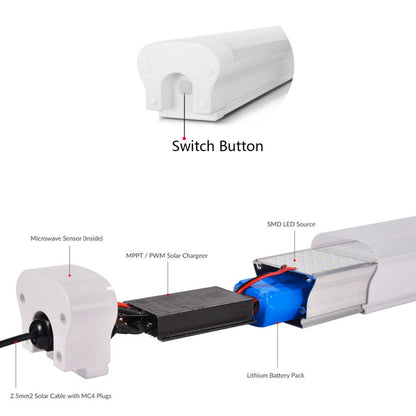

Controller Type PWM PWM MPPT MPPT MPPT
Charging Time 6Hrs
Discharging Time >24Hrs
LED. No. & Type 144 pcs SMD2835 195 pcs SMD2835 288 pcs SMD2835 384 pcs SMD2835 576 pcs SMD2835
Luminous Flux 1500 Lm 2200 Lm 3000 Lm 4200 Lm 5500 Lm
CCT 5000K
Operating Temp -4°F to 131°F
IP Rating IP67 Waterproof

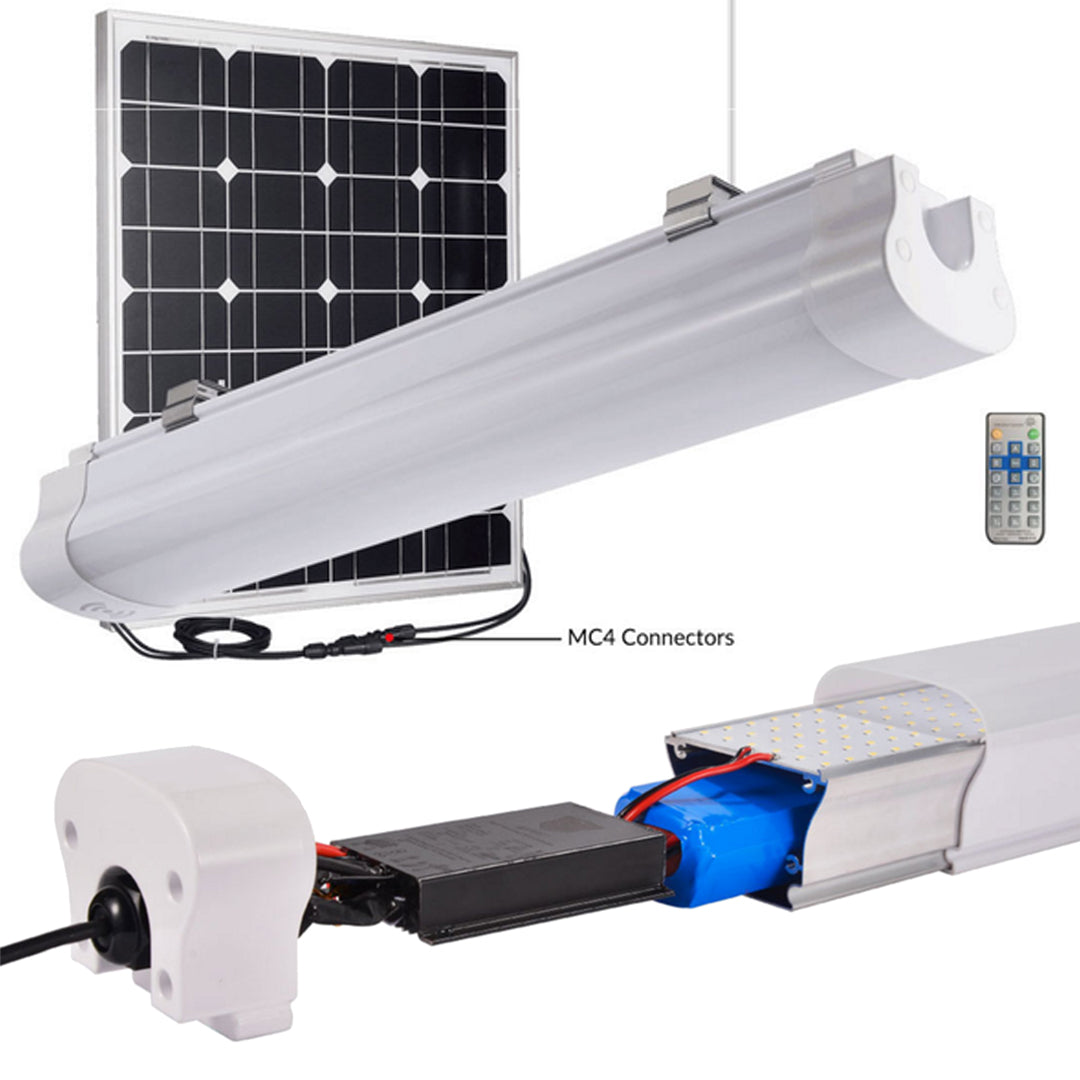

Solar Connection MC4 male & female plugs
Panel Size 25.1 x 16.5 x 1.1” 25.1 x 16.5 x 1.1” 25.1 x 23.2 x 1.1” 29.9 x 25.1 x 1.1” 39.3 x 25.1 x 1.1”
Dimensions 3.7 x 3.3 x 23.6” 3.7 x 3.3 x 23.6” 3.7 x 3.3 x 35.4” 3.7 x 3.3 x 35.4” 3.7 x 3.3 x 47.3”
Size
