Features
-
Zen transforms your outdoor space and extends your seating capacity with a sealed enclosure keeping bugs away.
-
Built in obstruction detection stops and reverses your Zen shade preventing damage or injury.
-
Ultra-quiet operation
-
Programmable limits. Fine tunable using a remote, through your control system, or te app, depending on con figuration.
-

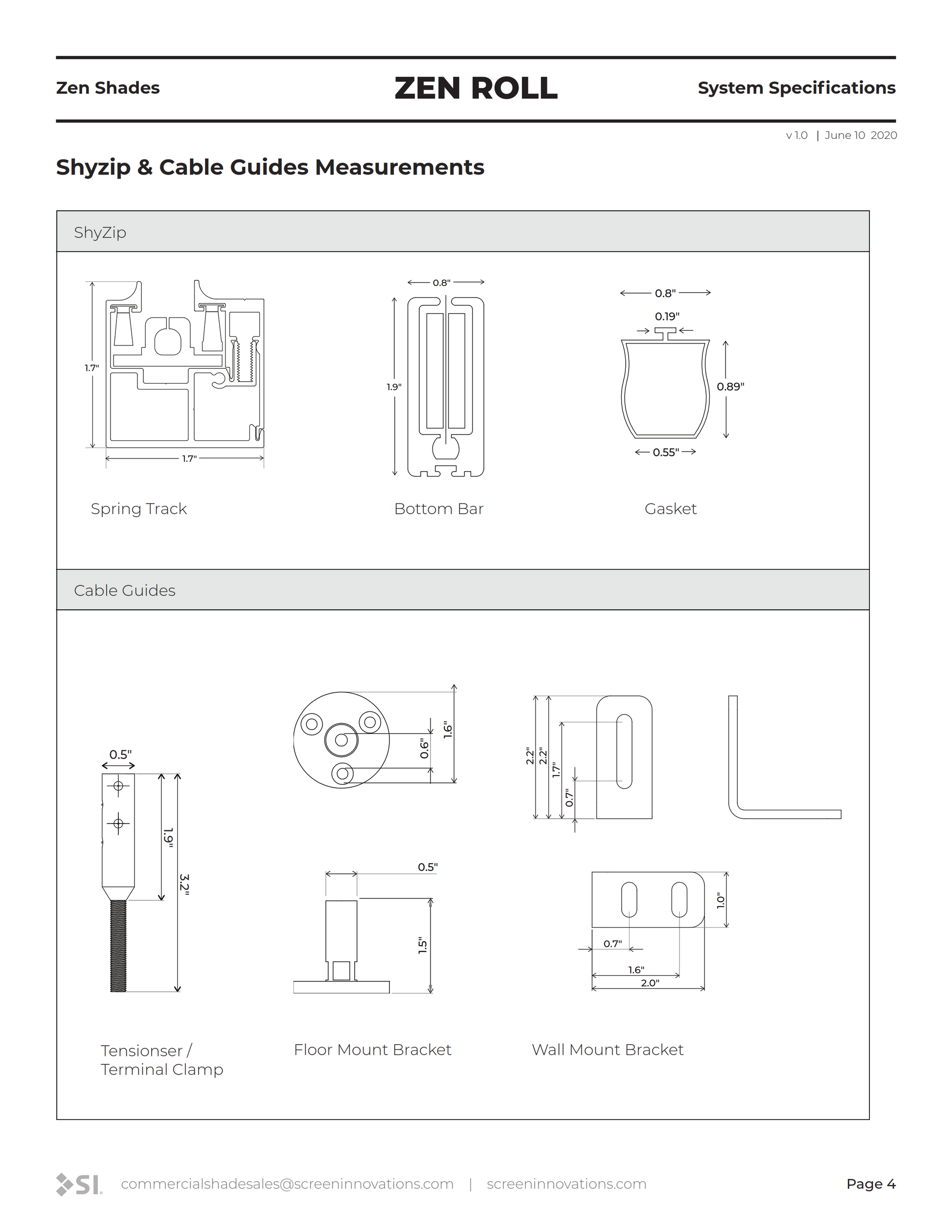

Control the wind with your stainless steel cable guide system.
-

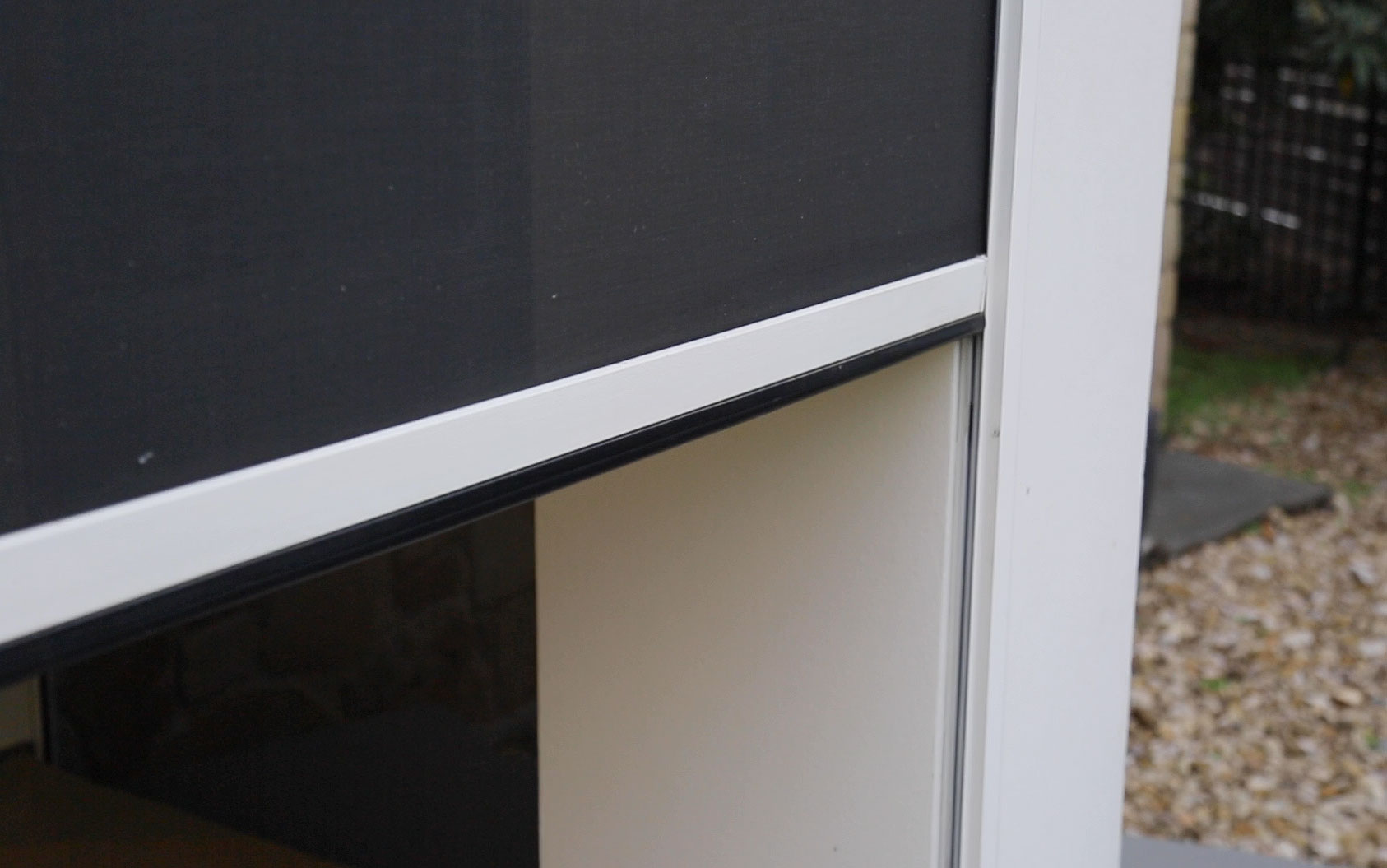

Shy-Zip™ side channels are compatible with open roll and pocket installations.
-
Shades move in unison, with speeds programmable through integration.
-
Expansive textile/fabric options with UV blocking Sunscreen, Light Filtering, Privacy and Black-out available. Most commercial grade fabrics carry NFPA 701-10 California Title 19, ASTM E2180, ASTM G21 Bacterial & Fungal Resistance and some carry various Acoustical Ratings for sound absorption. Custom fabric options available.
-
Power failure memory for the life of the shade.
-
Available in Wired for 485 using Janus or SiFi, and wirefree control using RTS.
Methods of Control
Wired Integration and control
-
IP control for all popular control systems - 485
-
Serial 232
-
Contact closure (global and local)
Power
-
Low Voltage Power, with operating voltage: (class 2, 24-28vdc)
-
Power supply features over/under-voltage, over/under current, and thermal protection for all devices in the system
-
Electrostatic isolated and galvanic isolation
-
Non-volatile memory, meaning programming is protected in the case of a power failure
-
Power must be derived from a Screen Innovations supplied power source for all low-voltage charging
Environment
Operating temperature range is normal ambient (32 to 110 degrees), and humidity levels up to 90%. Not meant for wet environments.
